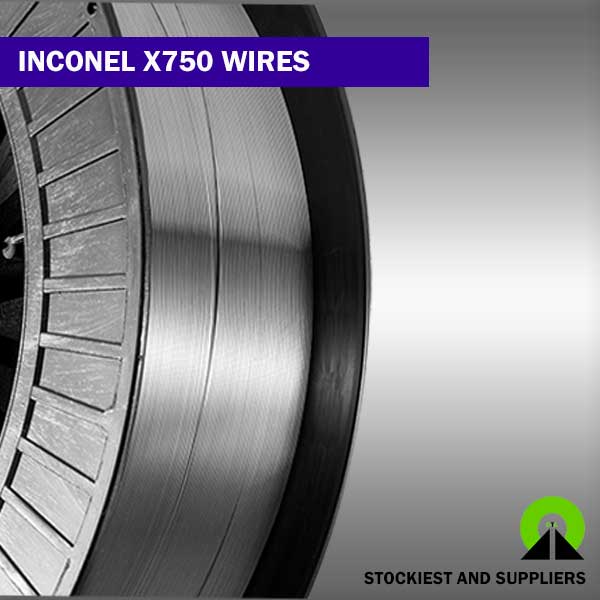

Specification of Inconel X750 Wire
| Standard | ASTM B166 / ASME SB166 |
|---|---|
| Dimensions | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | Cut Lengths: 0.125″ to 72″ No Limit on Spooled Lengths |
| Diameter | 0.0004″ to 0.040″ 10 microns to 1.0 mm Other Sizes on Request |
| Wire Density | 8.89 g/cm3 |
| Ultimate Strength (≥ MPa) | 580-750 |
| Wire Resistance (μΩ.m) | as standard |
| Wire Elongation (≥ %) | 28-30 |
| Surface | Polished bright, Smooth, Bare, Enamel, PTFE, Ceramic, Plated |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Welded Wire Mesh | Roll Width: 24inch, 36inch, 1Metre, 48inch, 72inch, or 84inch Roll Length: 100feet or 150feet |
| Wire Mesh Weaving Methods | plain weave, twill weave, dutch weave |
| Technique | Cold Rolled, Hot Rolled |
| Condition | M, Y, 1/2Hard |
| Offered in a Wide Range of Packages Including | Spool Reel Coil Bobbin Carrier Custom packaging provided from as low as 1lb to 200lb tapered plastics |
| Form | Filler Wire, Flat Wire, Coil Wire, Electrode Wire, Welding Wire, Filter Mesh, MIG Wire, TIG Wire, Spring Wire, Stranded and Twisted Wire |
Inconel X750 Wire Equivalent Grades
| Standard | Werkstoff Nr. | UNS |
|---|---|---|
| Inconel X-750 | 2.4669 | N07750 |
Chemical Composition Of Inconel X750 Wire
| Grade | Ni | Cr | Al | C | Mn | Ti | Cu | Si | S |
|---|---|---|---|---|---|---|---|---|---|
| Inconel X-750 | 70.0 min | 14.0 – 17.0 | 0.40 – 1.0 | 0.08 max | 1.00 max | 2.25 – 2.75 | 0.50 max | 0.50 max | 0.01 max |
Inconel X750 Wire Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 8.28 g/cm³ | 1430 °C | 1267 MPa | 868 MPa | 25 % |
