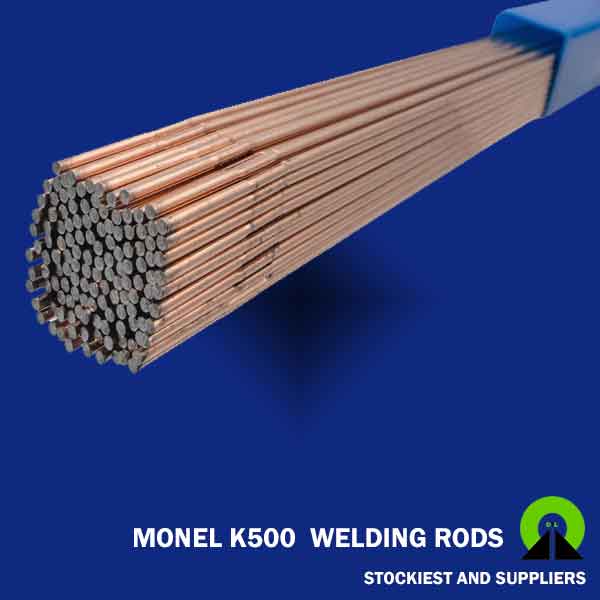

Specification of Monel K500 Welding Rods
| Specifications | AWS A5.14 ERNiCr-3, AWS A5.11 ENiCrFe-3 |
|---|---|
| International Specifications | BS 3072-3076 (NA14), DIN 17742, DIN 17750, DIN 17754, WERKSTOFF Nr 2.4816, TÜV 305, AFNOR-NC 15 Fe |
| Size | 2.00 mm Dia., 2.50 mm Dia., 3.15 mm Dia., 4 mm Dia., 5 mm Dia., 6.3 mm Dia. |
| Length | 300 mm to 450 mm |
| Type | TIG & Arc Welding Rods |
Monel K500 Welding Rods Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Monel K500 | 2.4375 | N05500 |
Chemical Composition Of Monel K500 Welding Rods
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Monel K500 Welding Rods Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| Monel K500 | 8.44 g/cm³ | 1350 °C (2460 °F) | Psi – 160,000 , MPa – 1100 | Psi – 115,000 , MPa – 790 | 20 % |
