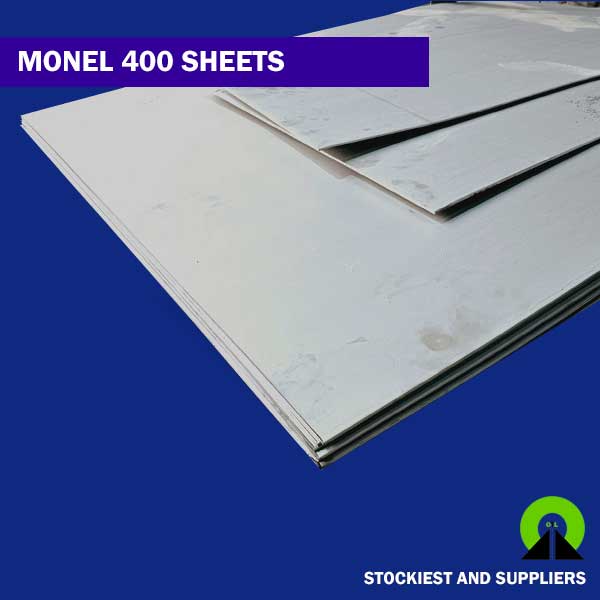

Monel 400 Sheets

Categories: Materials, Monel, Sheets and Plates

Description
Reviews (0)

AMS 4544 Alloy 400 Plate Specification

Specification	BS, ASME SB127, ASTM B127 UNS N04400, MSRR, AMS 4544 sheet
Grade	ALLOY 400 (66 Ni/34 Cu) – MONEL 400 – UNS N04400
Length	0 upto 12mm
Type	Flat Shim, sheared, Strip, Foils, Shim Sheet, annealed, Blank (Circle), Plain Sheet, Flats, soft annealed, Checker Plate, Rolls, Rolling Sheet, Coils, Plate, descaled, tread plate, Sheet, Flat Sheet, Clad Plate, Rolling Monel 400 Sheet Suppliers
Thickness	0.3 upto 1200 mm
Surface	Hot rolled plate (HR), BA, hairline, mirror, No.4, Cold rolled sheet (CR), BA NO (8), No.1 finish hot rolled, brush, 8K, 2D, 1D, SATIN, 2B Monel Plate Suppliers
Process of Monel Plate Suppliers	Cold/ Hot Rolled
Width	10mm upto 2500mm

ASTM B127 UNS N04400 Plate Chemical Composition

Grade	Cu	C	Fe	Mn	S	Si	Ni
Monel 400	28.00 – 34.00	0.30 max	2.50 max	2.00 max	0.024 max	0.50 max	63.00 min

Alloy 400 Strips Mechanical Properties

Element	Elongation	Density	Yield Properties (0.2%Offset)	Tensile Properties	Melting Point
Monel 400	40 %	8.8 g/cm3	Psi – 35,000 , MPa – 240	Psi – 80,000 , MPa – 550	1350 °C (2460 °F)

Monel Alloy 400 Foil Equivalent

STANDARD	BS	WERKSTOFF NR.	AFNOR	UNS	GOST	JIS	EN
Monel 400	NA 13	2.4360	NU-30M	N04400	МНЖМц 28-2,5-1,5	NW 4400	NiCu30Fe
