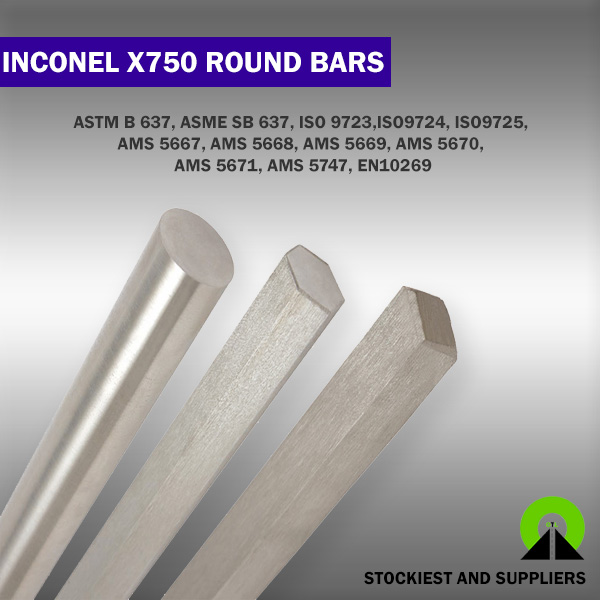

Specification of Inconel X750 Round Bar
| Specifications | UNS N07750, ASME SB-637, AMS 5669, 5667, 5668, WNR 2.4669, ASTM B637 |
|---|---|
| Dimension Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Bar Diameter | 10 to 1000mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm. Width: 10 to 500mm. |
| Square bar size | 4 to 100mm |
| Rectangular Bars | Size: 33 x 30mm to 295 x 1066mm. Thickness: 3.0 to 12.0mm. |
| Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2 to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients requirements |
| Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
Inconel X750 Round Bar Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| X750 | 2.4669 | N07750 |
Chemical Composition Of Inconel X750 Round Bar
| Alloy | % | Ni | Cr | Fe | Nb | Co | C | Mn | Si | S | Cu | Al | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inconel X-750 | Min. | 14 | 5.0 | 0.7 | 0.4 | 2.25 | |||||||
| Max. | 70 | 17 | 9.0 | 1.2 | 1.00 | 0.08 | 1.00 | 0.5 | 0.01 | 0.5 | 1.0 | 2.75 |
Inconel X750 Round Bar Mechanical Properties
| Alloy | Tensile strength Rm N/mm² |
Yield strength RP0.2 N/mm² |
Elongation A5 % |
Brinell hardness HB |
|---|---|---|---|---|
| Solution treatment | 1267 | 868 | 25 | ≤400 |
