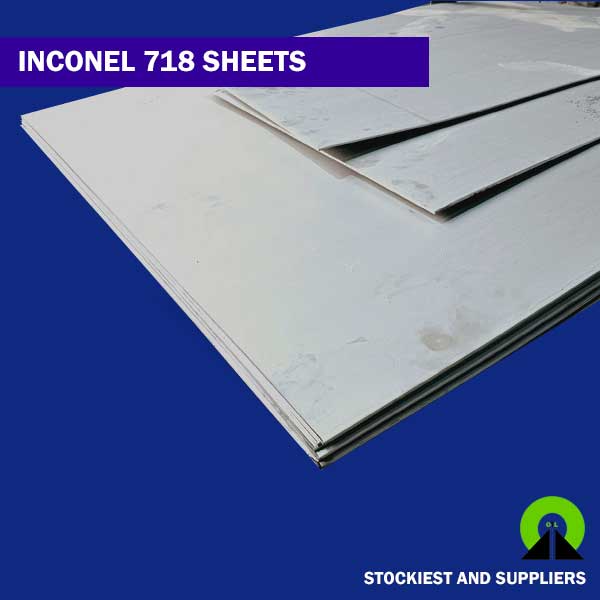

Specification of Inconel 718 Plate
| Specifications | ASME-SB-443 |
|---|---|
| Dimensions | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Size Range | Cold Rolled : 0.5-6.4 mm Hot Rolled : 3.0–10.0 mm |
| Thickness | 0.3 mm to 120 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tolerances (width / thickness) | EN 10258/ DIN 59381 EN 10151 EN 10088 |
| Form | Plate, Plain Plate, Flat Shim, Flat Plate, Shim Plate, Rolling Plate, soft annealed, descaled, sheared, annealed |
| Finish | 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Inconel 718 Plate Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Inconel 718 | 2.4668 | N07718 |
Chemical Composition Of Inconel 718 Plate
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
Inconel 718 Plate Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) |
|---|---|---|---|---|
| 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
