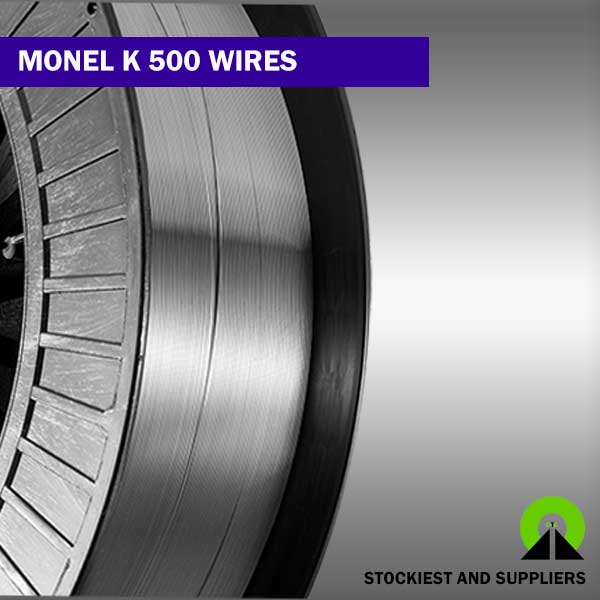

Specification of Monel K500 Wire
| Specification | Details |
|---|---|
| Standard | ASTM B865 / ASME SB865 |
| Dimensions | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | Cut lengths 0.125″ to 72″; no limit on spooled lengths |
| Diameter | 0.0004″ to 0.040″ (10 microns to 1.0 mm); other sizes on request |
| Wire Density | 8.89 g/cm³ |
| Ultimate Strength | 580–750 MPa |
| Wire Resistance | As standard (μΩ·m) |
| Wire Elongation | 28–30% |
| Surface Finish | Polished bright, smooth, bare, enamel, PTFE, ceramic, plated |
| Tempers | Dead soft annealed to ultra spring temper |
| Welded Wire Mesh | Roll width 24″, 36″, 1 m, 48″, 72″, 84″; roll length 100 ft or 150 ft |
| Wire Mesh Weaving Methods | Plain weave, twill weave, Dutch weave |
| Technique | Cold rolled, hot rolled |
| Condition | M, Y, 1/2 Hard |
| Packaging | Spool, reel, coil, bobbin, carrier, custom packaging from 1 lb to 200 lb |
| Form | Filler wire, flat wire, coil wire, electrode wire, welding wire, filter mesh, MIG/TIG wire, spring wire, stranded & twisted wire |
Monel K500 Wire Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel K500 | 2.4375 | N05500 |
Chemical Composition Of Monel K500 Wire
| Grade | C | Mn | Si | Cu | S | Cr | Fe | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| Monel K500 | 0.25 max | 1.50 max | 0.50 max | 27.0-33.0 | 0.10 max | – | 0.5-2.0 max | 63.00 min | – |
Monel K500 Wire Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| Monel K500 | 8.44 g/cm³ | 1350 °C (2460 °F) | Psi – 160,000 , MPa – 1100 | Psi – 115,000 , MPa – 790 | 20% |
