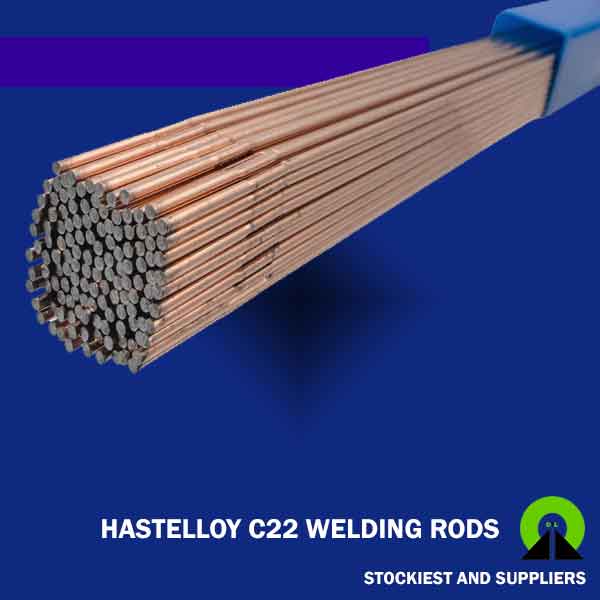

Specification of Hastelloy C22 Welding Rods
| Grades | E307-15, E307-16, E308L-16, E308Mo-15, E308-16, E309L-16, E309MoL-16, E309-16, E309Mo-16, E310-16, E312-16 |
|---|---|
| Types | Mild Steel General Purpose: E6013, E7014, E7024 Low Hydrogen: E7016, E7016-1, E7018, E7018-1, E7018-H4, E7018(NACE) Low Alloy High Tensile: E7018-G, E7018-A1, E8018-G, E8018-W2, E8018-B2L, E8016-B6, E8018-C1, E9018-M, E9018-B3, E9018-G, E10016-G, E11018-M, E10018-D2 Hard Facing: Electrodes suitable for weld metal hardness 250BHN – 600BHN Cast Iron: ENiFeCl, ENiCu, ENiCl Stainless Steel: E307-16, E308L-16, E309L-16, E309MoL-16, E310-16, E312-16, E347-16, E318-16, E410-16, E430-16, E309Cb-16 |
| Sizes | 1.60mm / 0.063″, 2.00mm / 0.079″, 2.50mm / 0.098″, 3.15mm / 0.124″, 3.20mm / 0.126″, 3.25mm / 0.128″, 4.00mm / 0.157″, 5.00mm / 0.197″ |
| Length | 250mm, 300mm, 350mm, 400mm, 450mm |
Hastelloy C22 Welding Rods Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
|---|---|---|---|---|
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | NiCr21Mo14W |
Chemical Composition Of Hastelloy C22 Welding Rods
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
Hastelloy C22 Welding Rods Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C22 | 8.69 g/cm³ | 1399 °C (2550 °F) | Psi – 100,000 , MPa – 690 | Psi – 45,000 , MPa – 310 | 45 % |
