Hastelloy C22 Fittings Manufacturers in India
Ozair Tradelink is a leading Hastelloy C22 fittings manufacturer, supplier, and exporter in India, providing premium nickel-chromium-molybdenum alloy pipe fittings for highly corrosive and high-temperature applications. Manufactured as per ASTM B366, ASME B16.9, and international standards, Hastelloy C22 (UNS N06022) fittings ensure excellent durability and chemical resistance.
About Hastelloy C22
Hastelloy C22 is a versatile alloy offering superior resistance to pitting, crevice corrosion, stress corrosion cracking, and chloride-induced attack. It performs exceptionally well in both oxidizing and reducing environments, making it ideal for critical industrial systems.

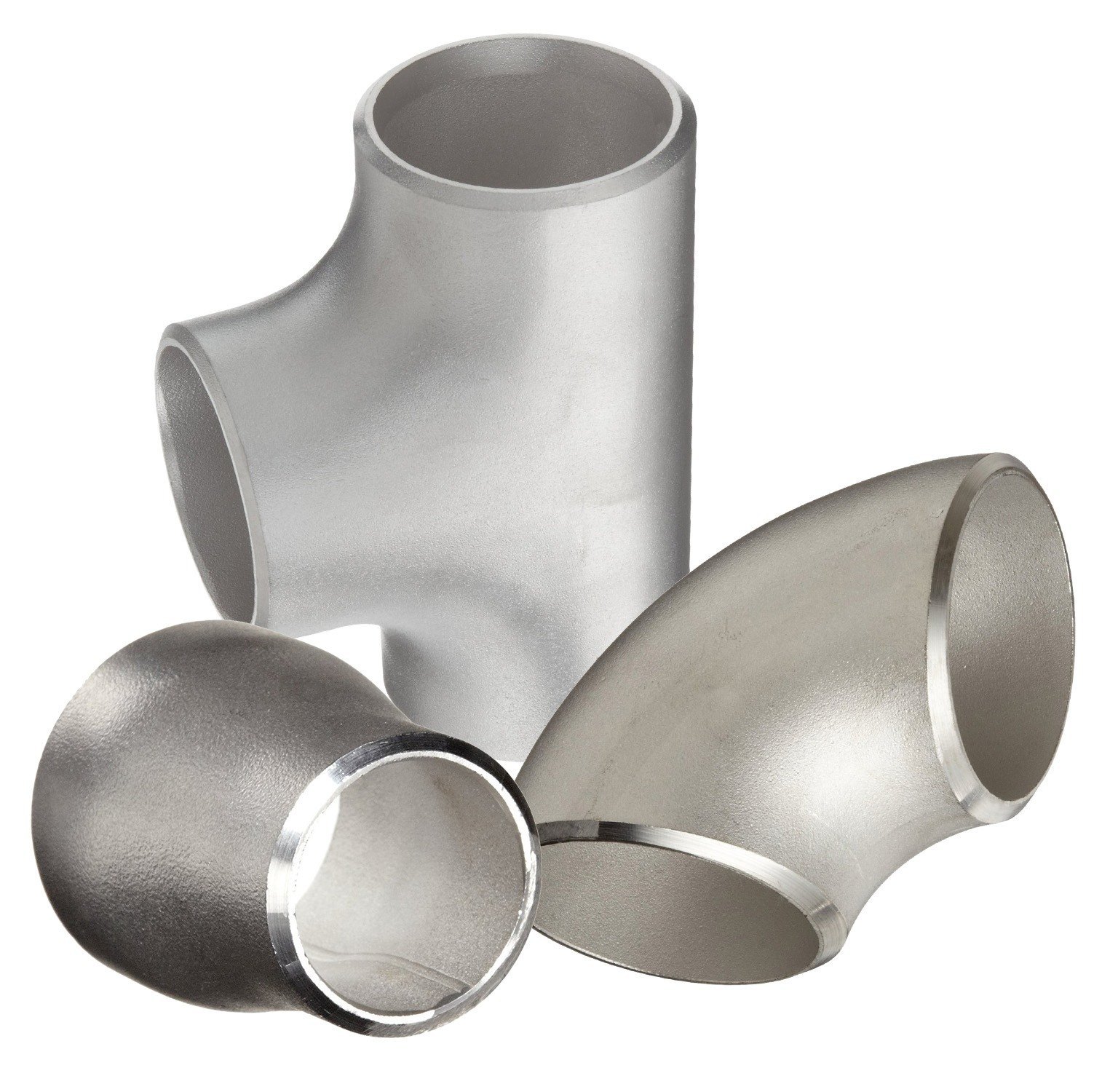

Types of Hastelloy C22 Pipe Fittings Available
90° & 45° Elbows
Equal & Unequal Tees
Concentric & Eccentric Reducers
Pipe Caps
Stub Ends
Cross Fittings
Custom Fabricated Fittings
Applications
Hastelloy C22 fittings are widely used in:
Chemical Processing Plants
Petrochemical Industry
Pollution Control Systems
Pharmaceutical Equipment
Oil & Gas Industry
Waste Treatment Facilities
Hastelloy Alloy C22 Pipe Fittings Specifications
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Hastelloy C22 Pipe Fittings Equivalent Grades
| STANDARD | UNS | WNR. | JIS | GOST | EN | OR |
|---|---|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | – | NiCr21Mo14W | – |
Hastelloy Alloy C22 Butt weld Fittings Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
C22 Hastelloy Pipe Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
